Process capability is defined as a statistical measure of the inherent process variability of a given characteristic. You can use a process-capability study to assess the ability of a process to meet specifications. They are valuable tools for evaluating initial and ongoing capability of parts and processes.

What is process capability with example?

Process Capability Example 1: The ice cream that must be served in an ice cream parlor has to be between -15 degrees Celsius and -35 degrees Celsius. The process of refrigeration that keeps the temperature has a standard deviation (SD) of 2 degrees Celsius. And the mean value of this temperature is -25 degrees Celsius.

What are the methods of calculating process capability?

To determine how our process is operating, we can calculate Cp (Process Capability), Cpk (Process Capability Index), or Pp (Preliminary Process Capability) and Ppk (Preliminary Process Capability Index), depending on the state of the process and the method of determining the standard deviation or sigma value.

What are the points of process capability?

Two parts of process capability are: 1) measure the variability of the output of a process, and 2) compare that variability with a proposed specification or product tolerance.

What is a good process capability value?

We generally want a Cpk of at least 1.33 [4 sigma] or higher to satisfy most customers. Cpk can have an upper and lower value reported. If the upper value is 2 and the lower is 1, we say it has been shifted to the left.

What is process capability formula?

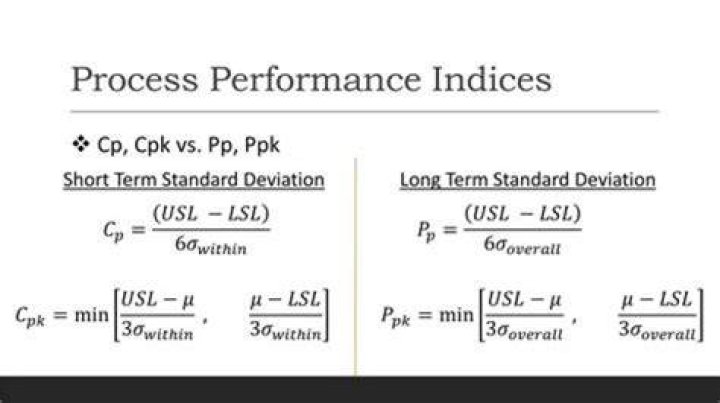

Measures of Process Capability (Indices) Process Capability Formula (Cp, Cpk): K= (Process Centre-Process Mean)/50%of USL-LSL and if we talk about process center; Process center = (USL+LSL)/2, and the process mean is the average or mean of the process data points.

What is CP Cpk?

Cp and Cpk, commonly referred to as process capability indices, are used to define the ability of a process to produce a product that meets requirements. Specifications: Specifications define product requirements. In other words, they define what is expected from an item for it to be usable.

What is a good CP Cpk value?

What Cpk Value Should You Aim For? A Cpk value less than 1.0 is considered poor and the process is not capable. A value between 1.0 and 1.33 is considered barely capable, and a value greater than 1.33 is considered capable. But, you should aim for a Cpk value of 2.00 or higher where possible.

What is a good value for Cpk?

The higher the Cpk, the better is the capability of the process to meet its requirements. In the industry, a Cpk of less than 1.66 needs a closer look. A Cpk that’s less than 1.33 needs some action to make it higher, and a Cpk of less than 1.0 means that the process is not capable of meeting its requirements.

What is CP Cpk value?

What does CP of 1.33 mean?

Cpk = or >1.33 indicates that the process is capable and meets specification limits. Any value less than this may mean variation is too wide compared to the specification or the process average is away from the target.

What is CP or Cpk?
